Product description
dmXLAN switches form the backbone of the network distribution system. The dmXLAN Switch 6 has been specifically designed for live entertainment applications, where a mixture of data protocols would otherwise overload and saturate commercially available network switches.
The dmXLAN Switch 6 is a passively cooled network switch with six 10/100/1000 Mbit PoE(+) ports. PTPv2 support enables precise time synchronization across networked devices, forming a reliable basis for time-critical applications such as intercom systems, audio-over-IP, and broadcast infrastructure.

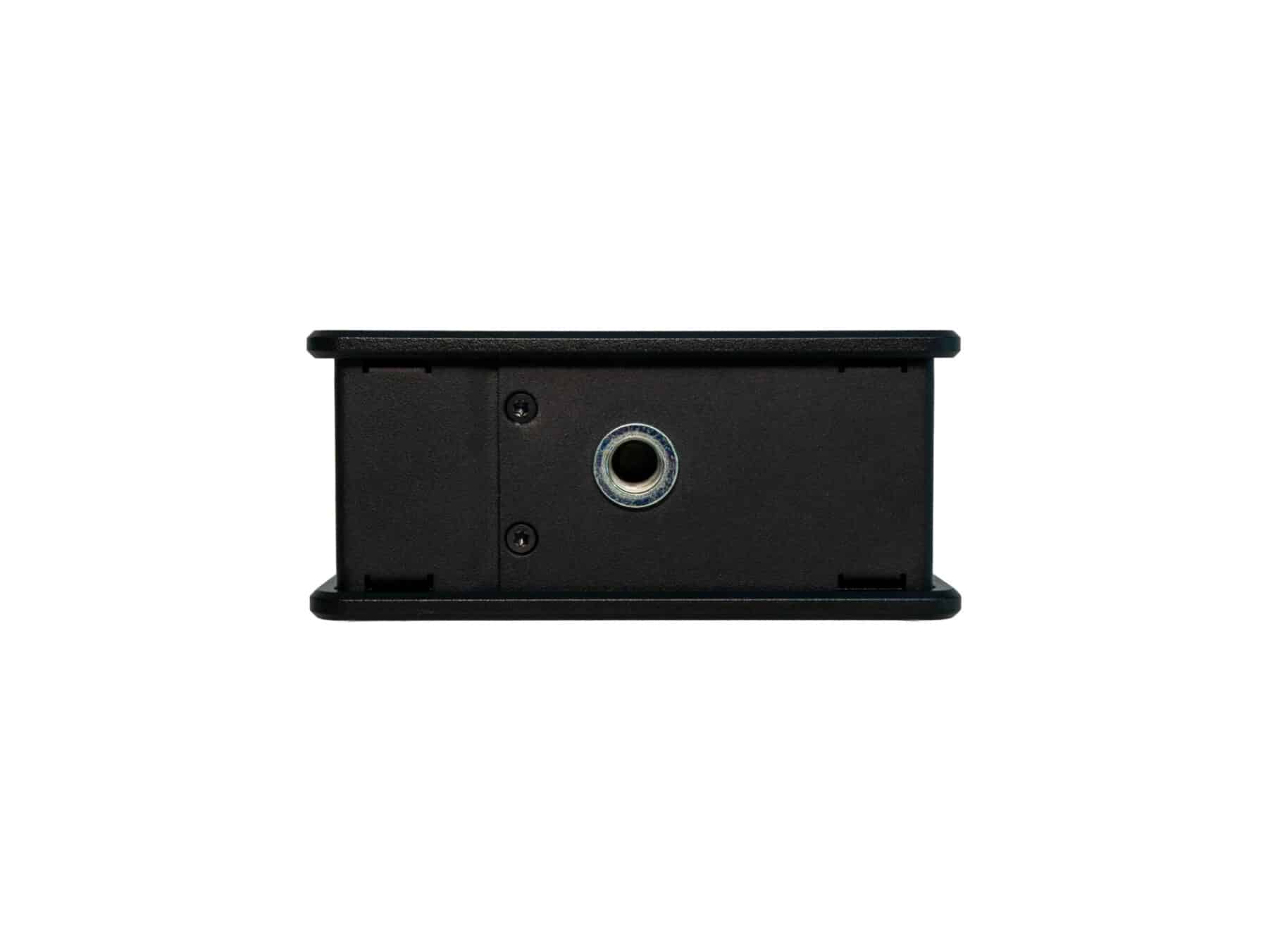

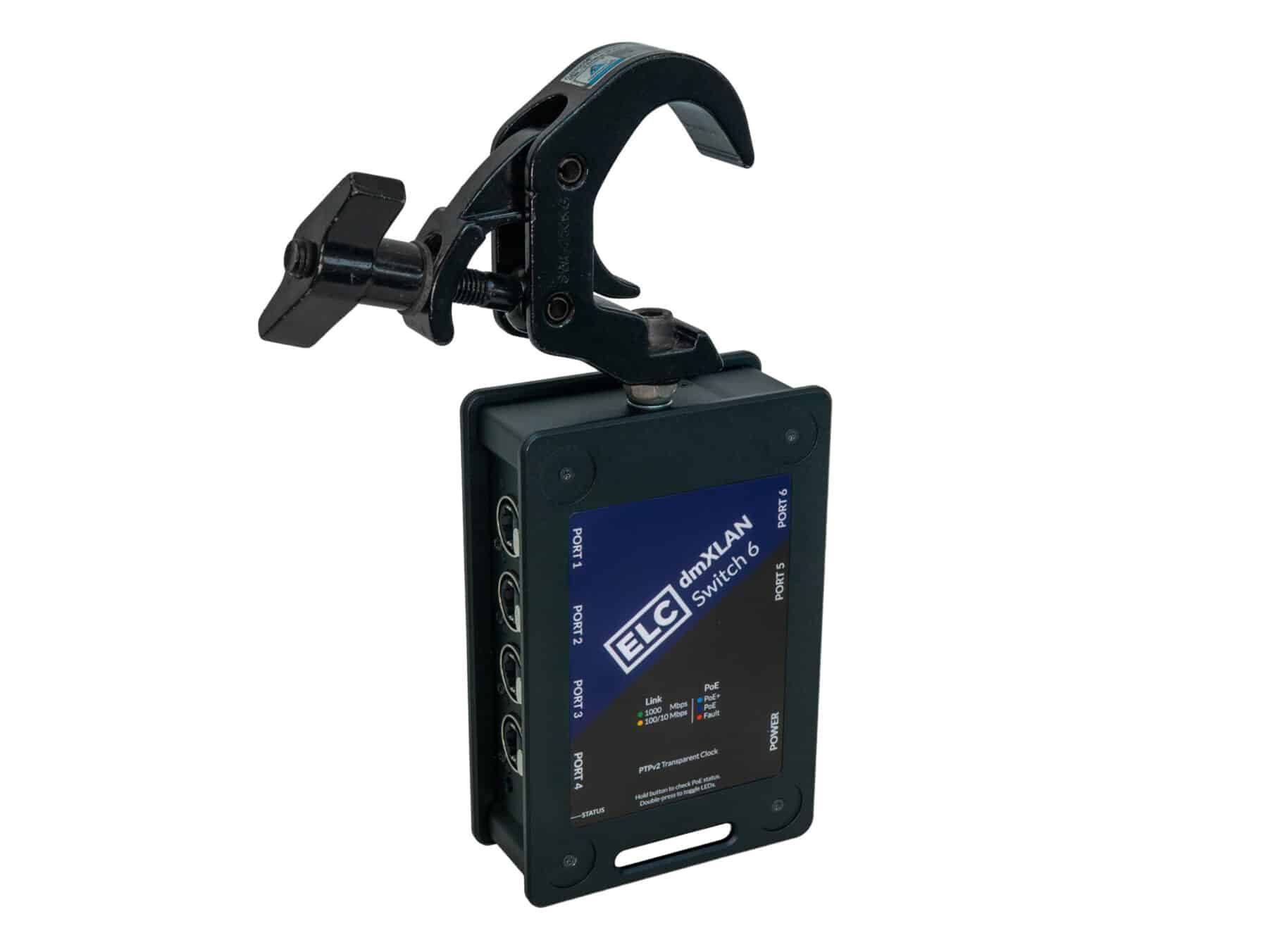

Its rugged form factor, including an M10 thread and safety attachment points, makes the switch suitable for mounting in almost any situation.
Article number: ELC-SW6
Features

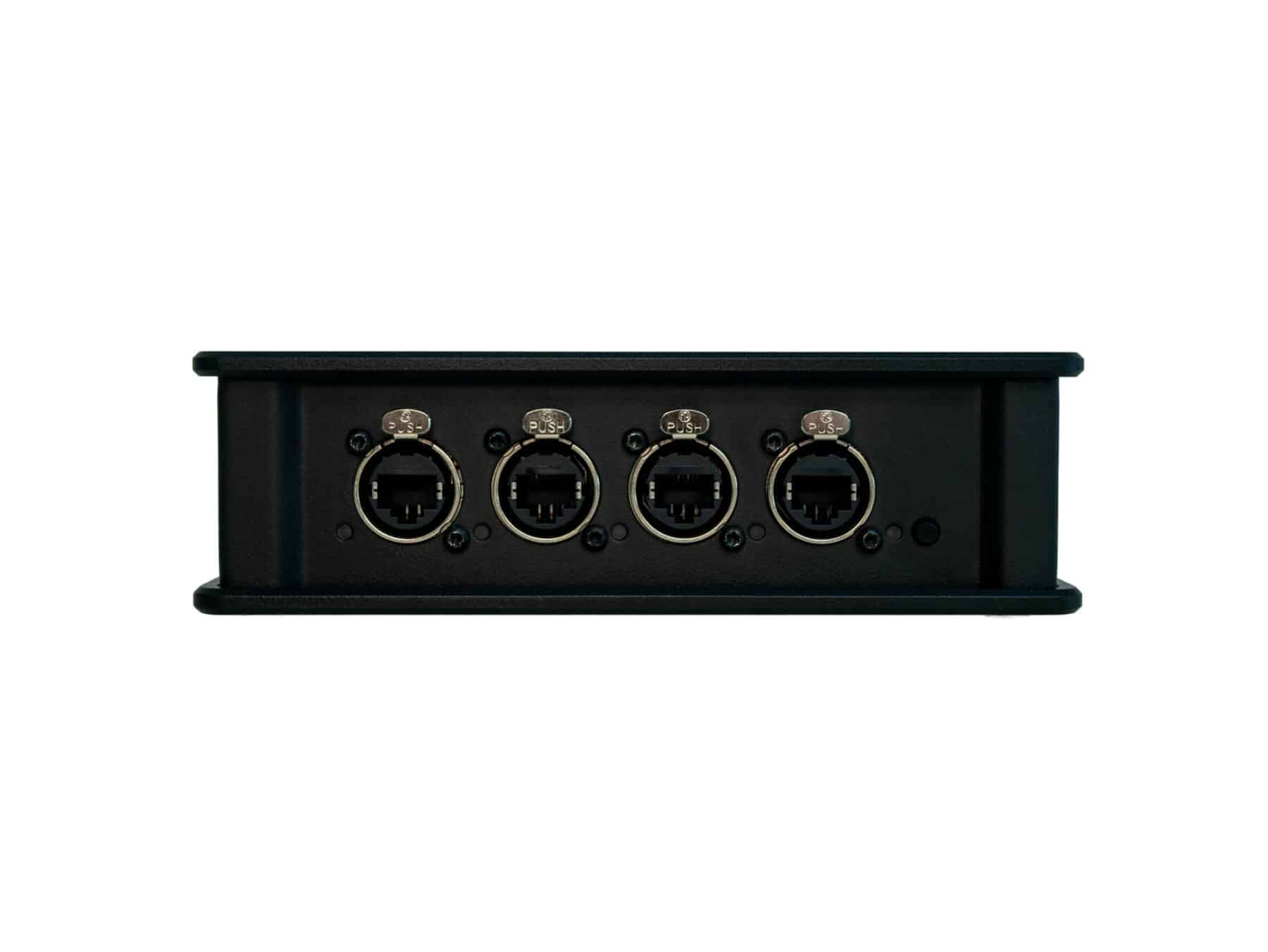

- 6x 10/100/1000 Mbps ports with EtherCON connections
- PoE(+) ports on all ports, with a total budget of up to 90W, conform IEEE 802.3af (15.4W) and IEEE 802.3at (30W)
- LED indicators per port, switchable to show link status and PoE(+) budget and can be turned completely off
- PTPv2 (IEEE 1588-2008) End-to-End (E2E) Transparent Clock (TC)
- Supports multicast and unicast PTPv2 messages
- Jumbo packets up to 9000 bytes
- 1 QoS queue per port
- Monitoring in dmXLAN (this feature will be enabled in future firmware updates)
- Robust metal housing with M10 thread for attachment and latch options for safety wire
Downloads

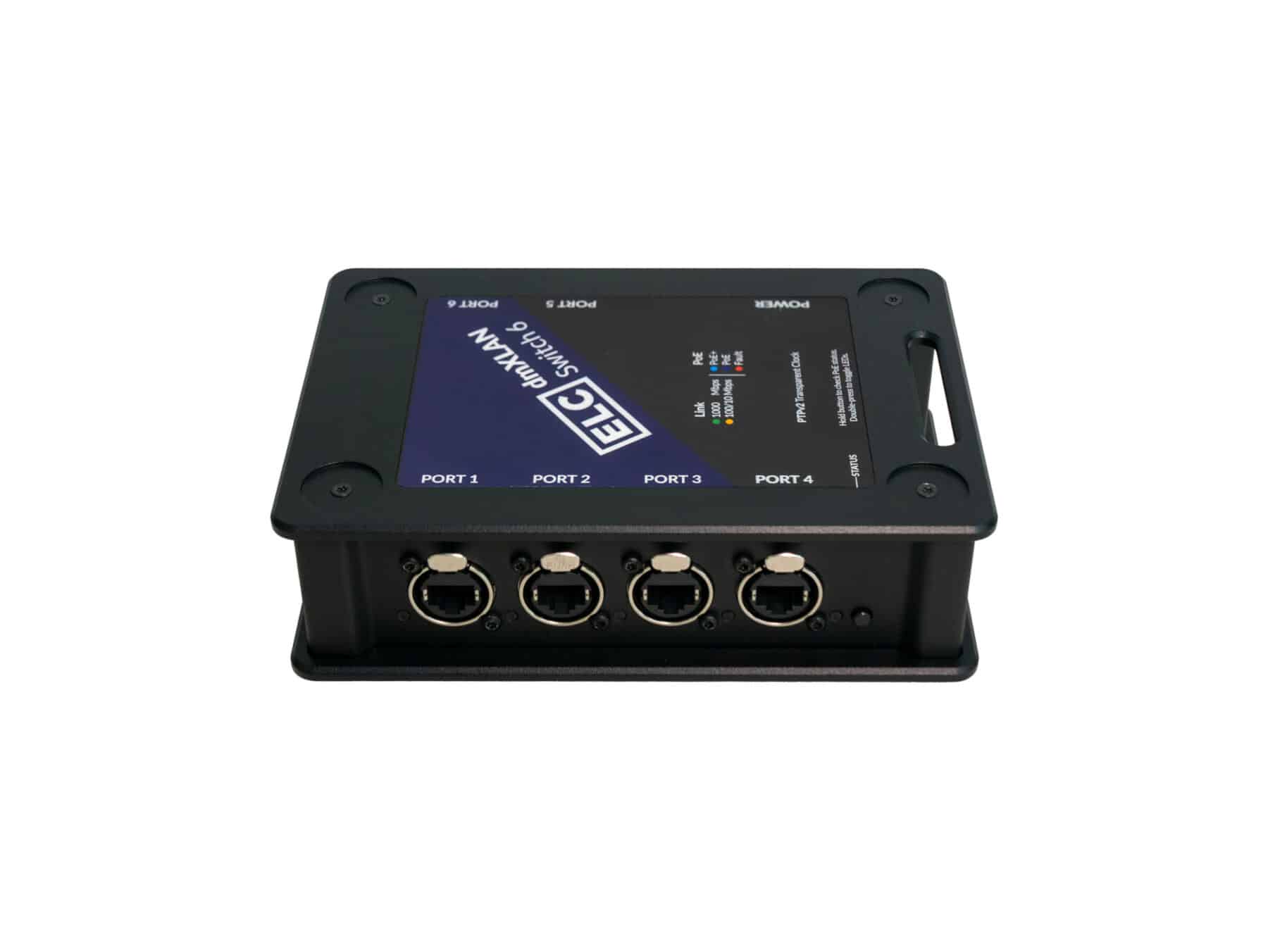

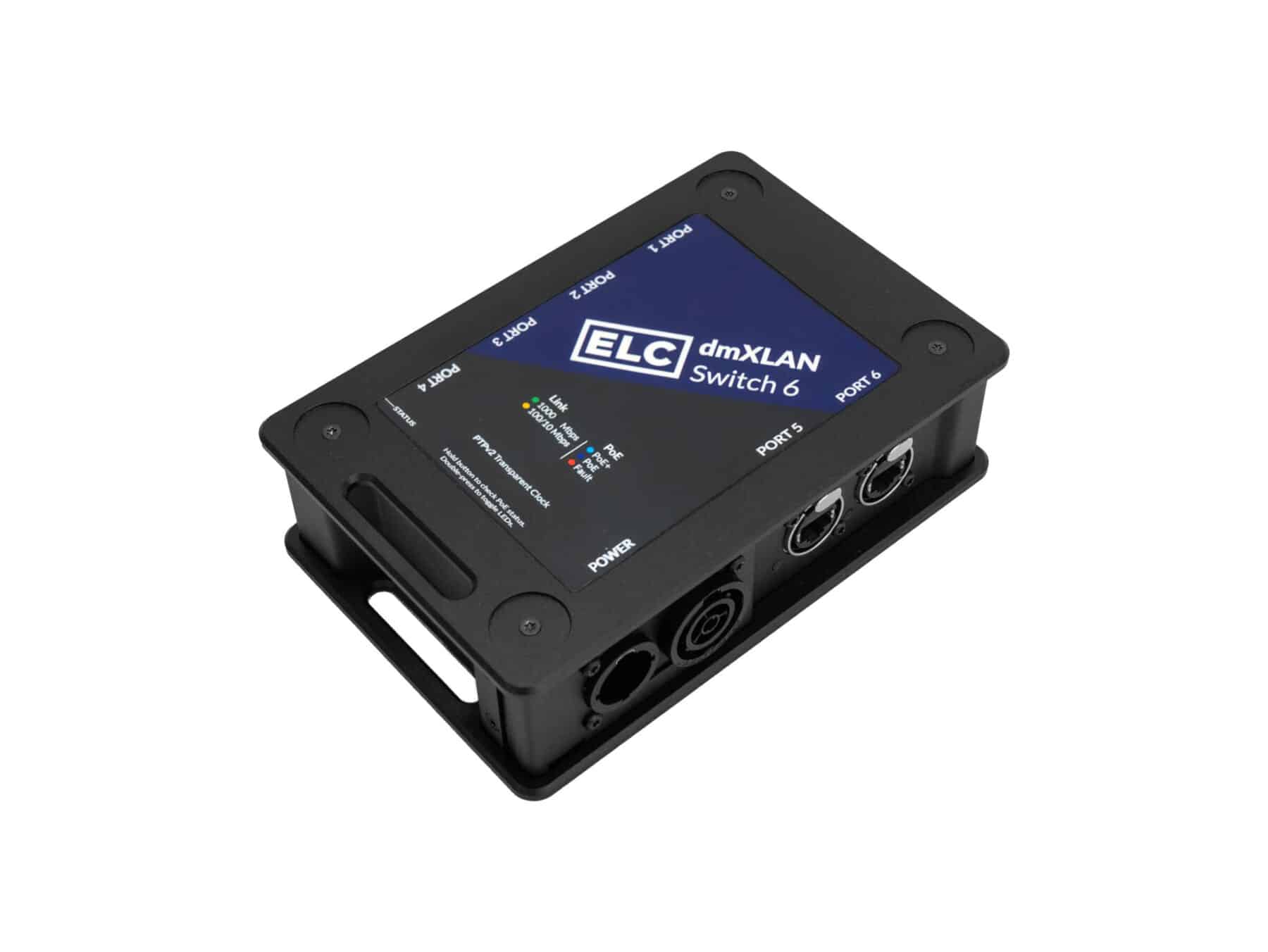

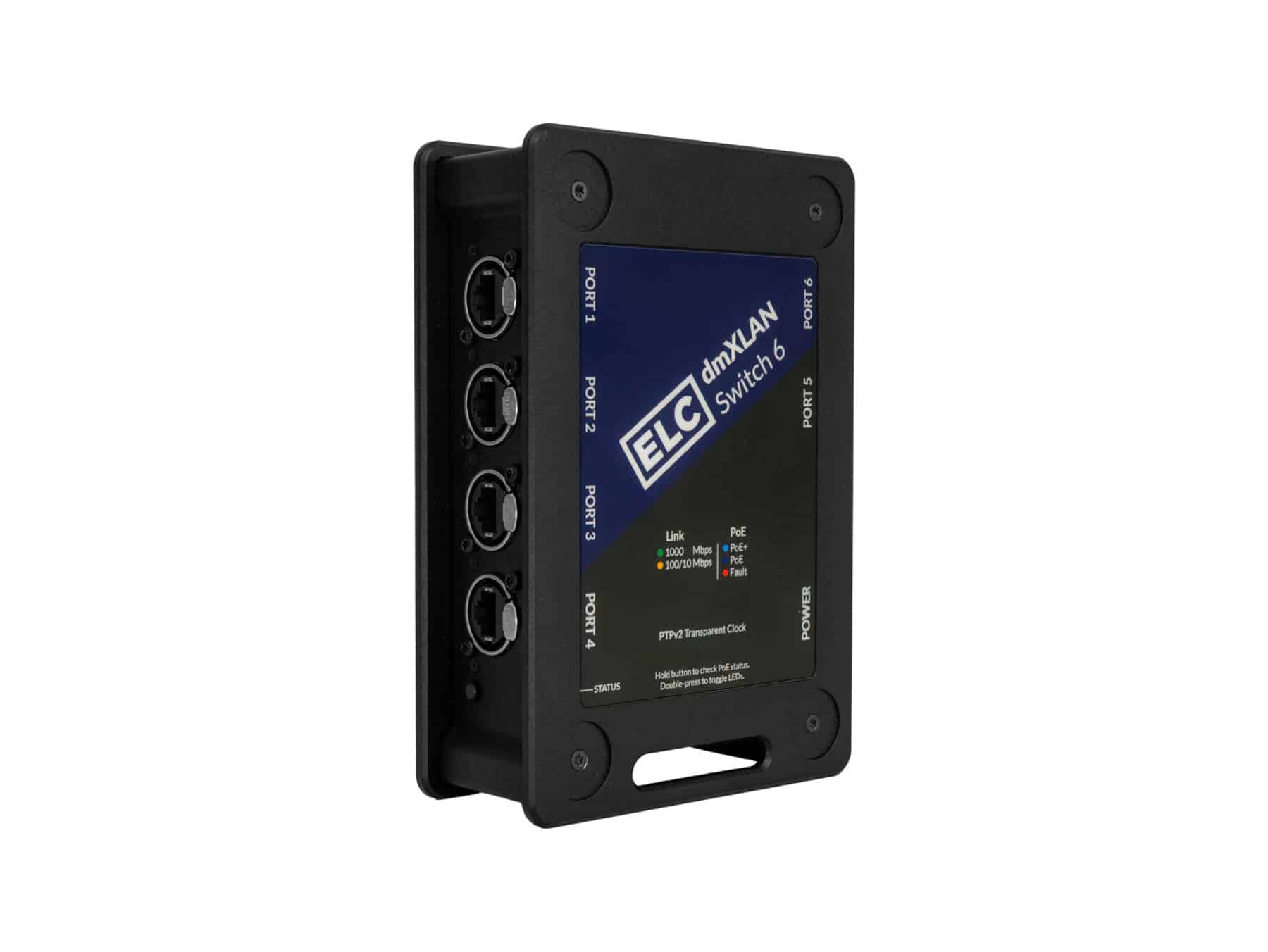

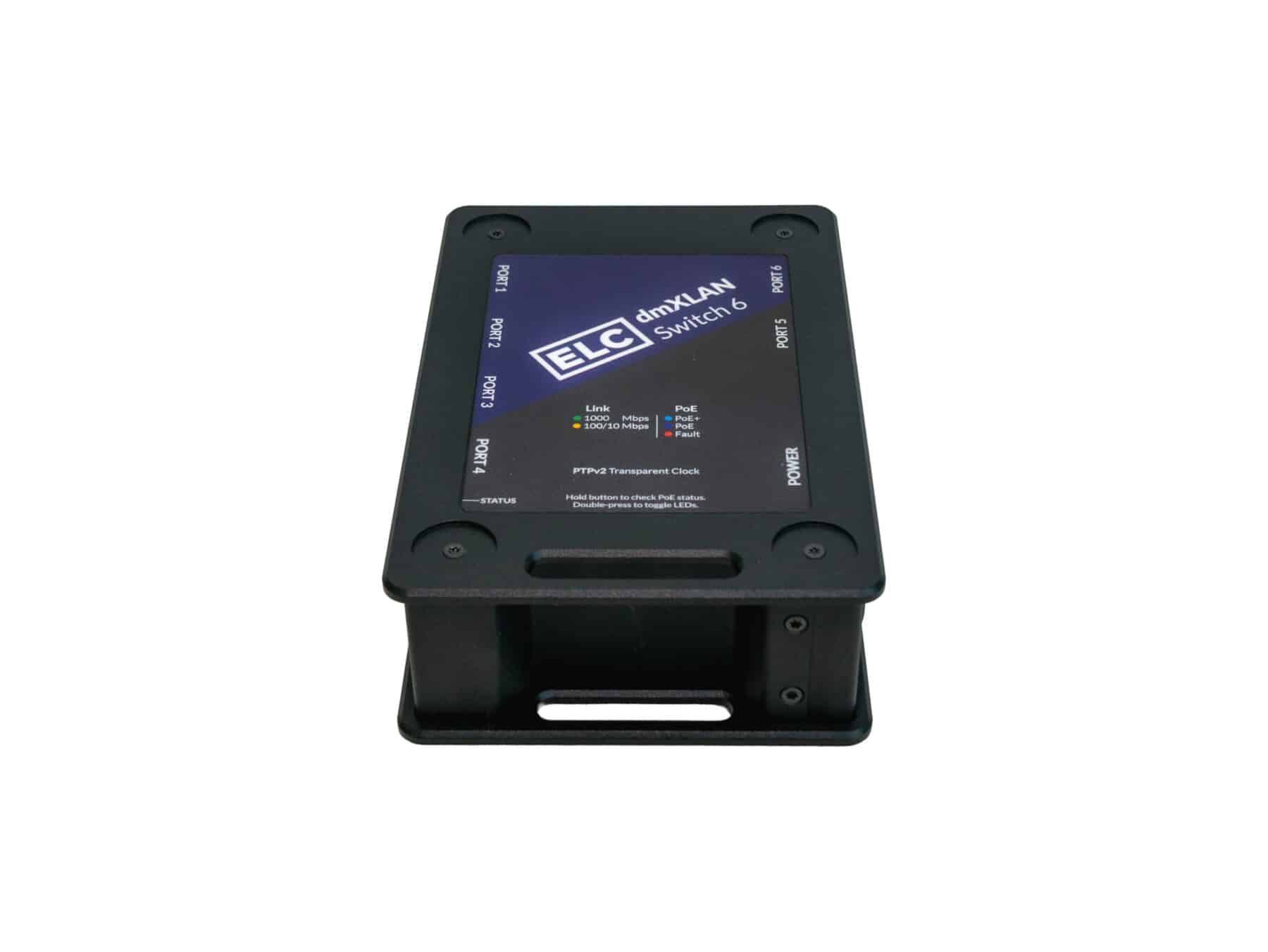

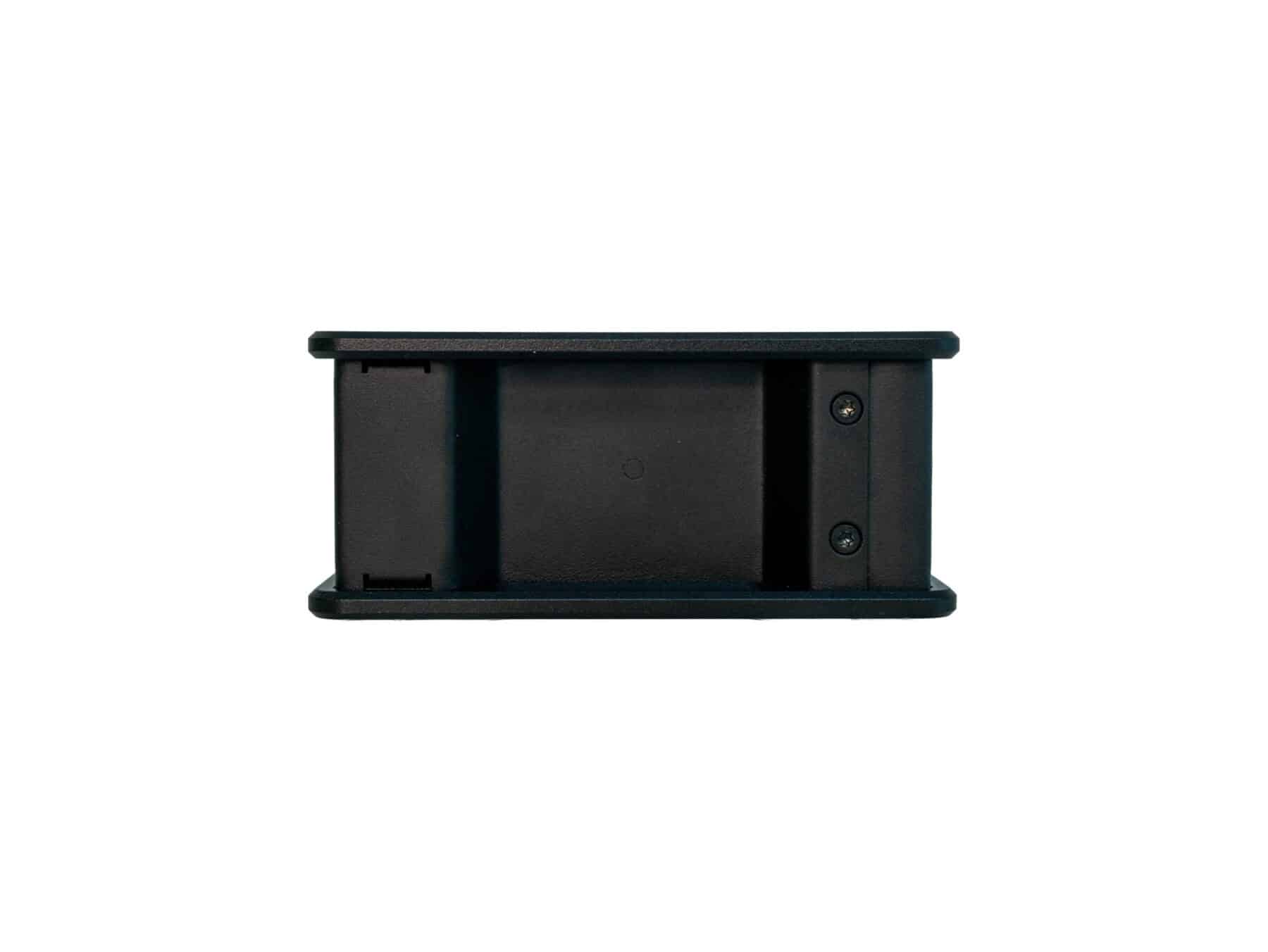

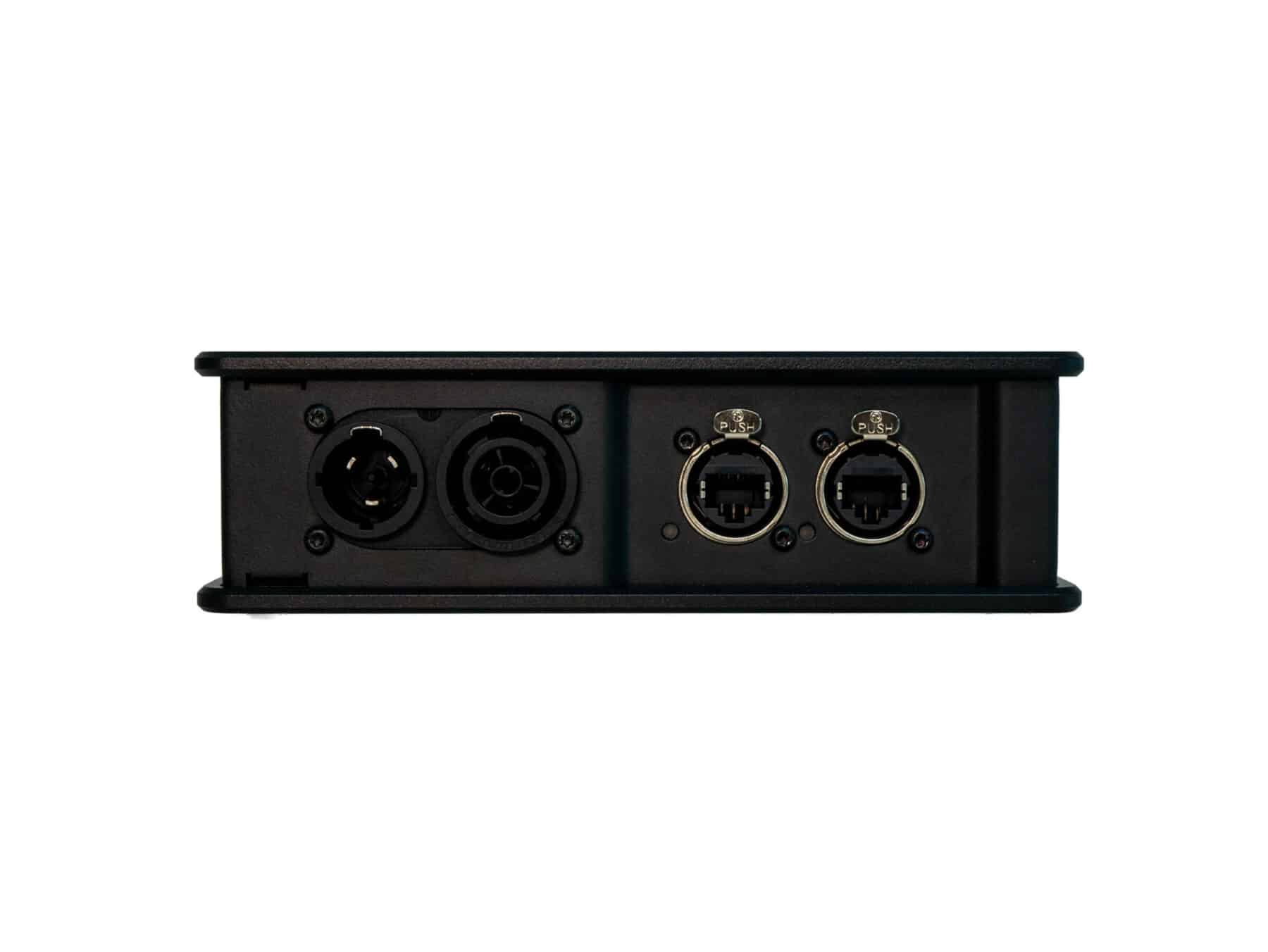

Product Photos
