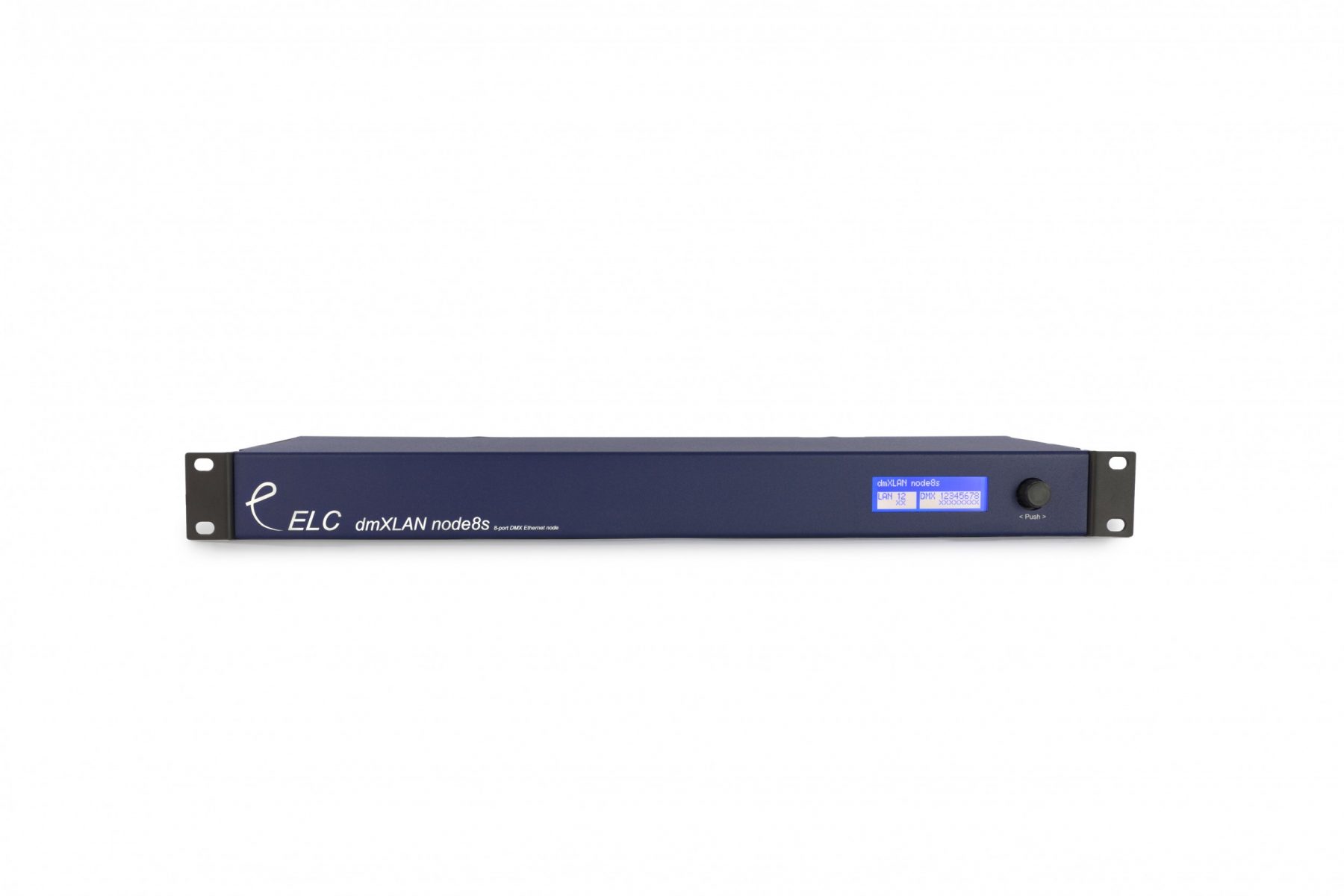

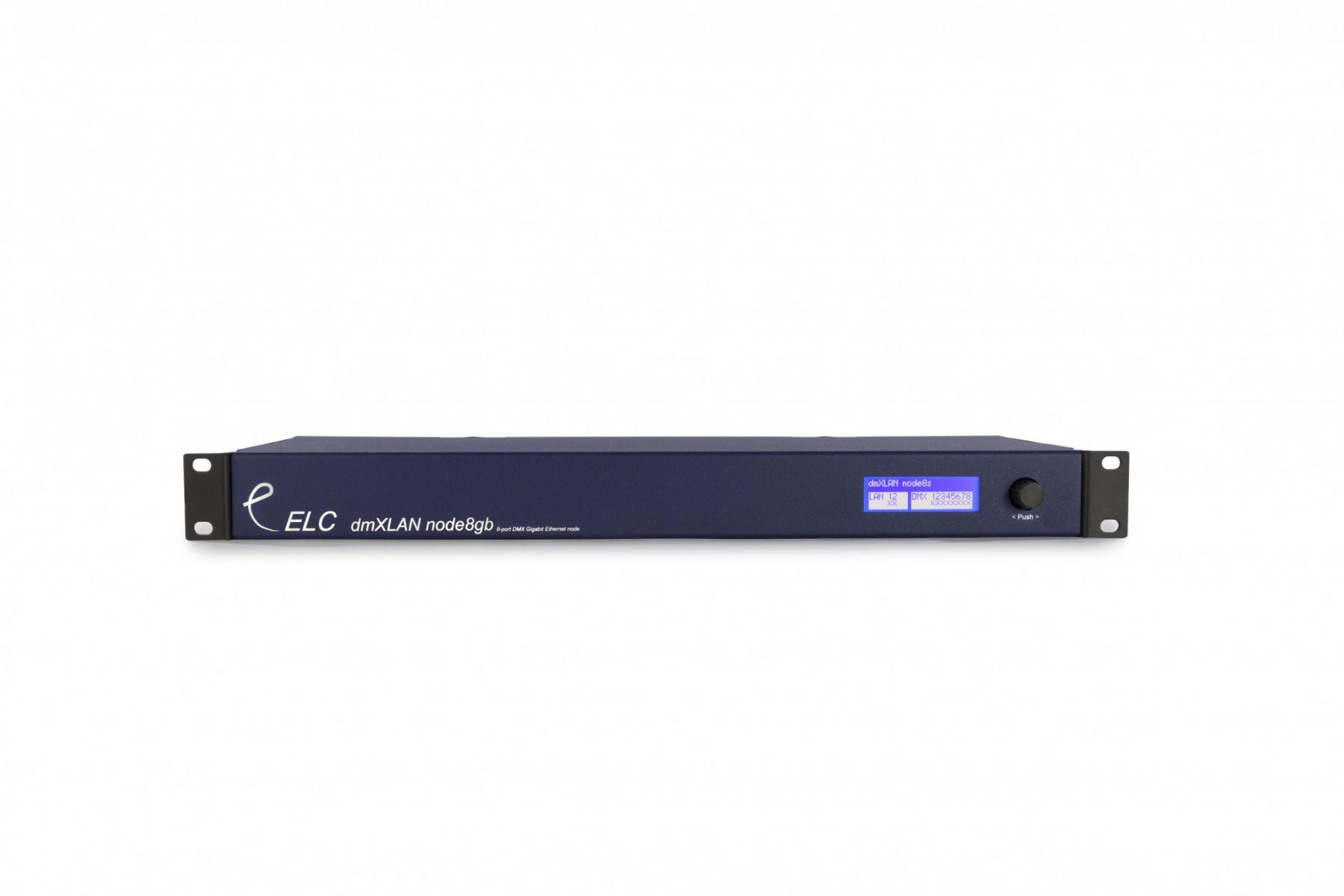

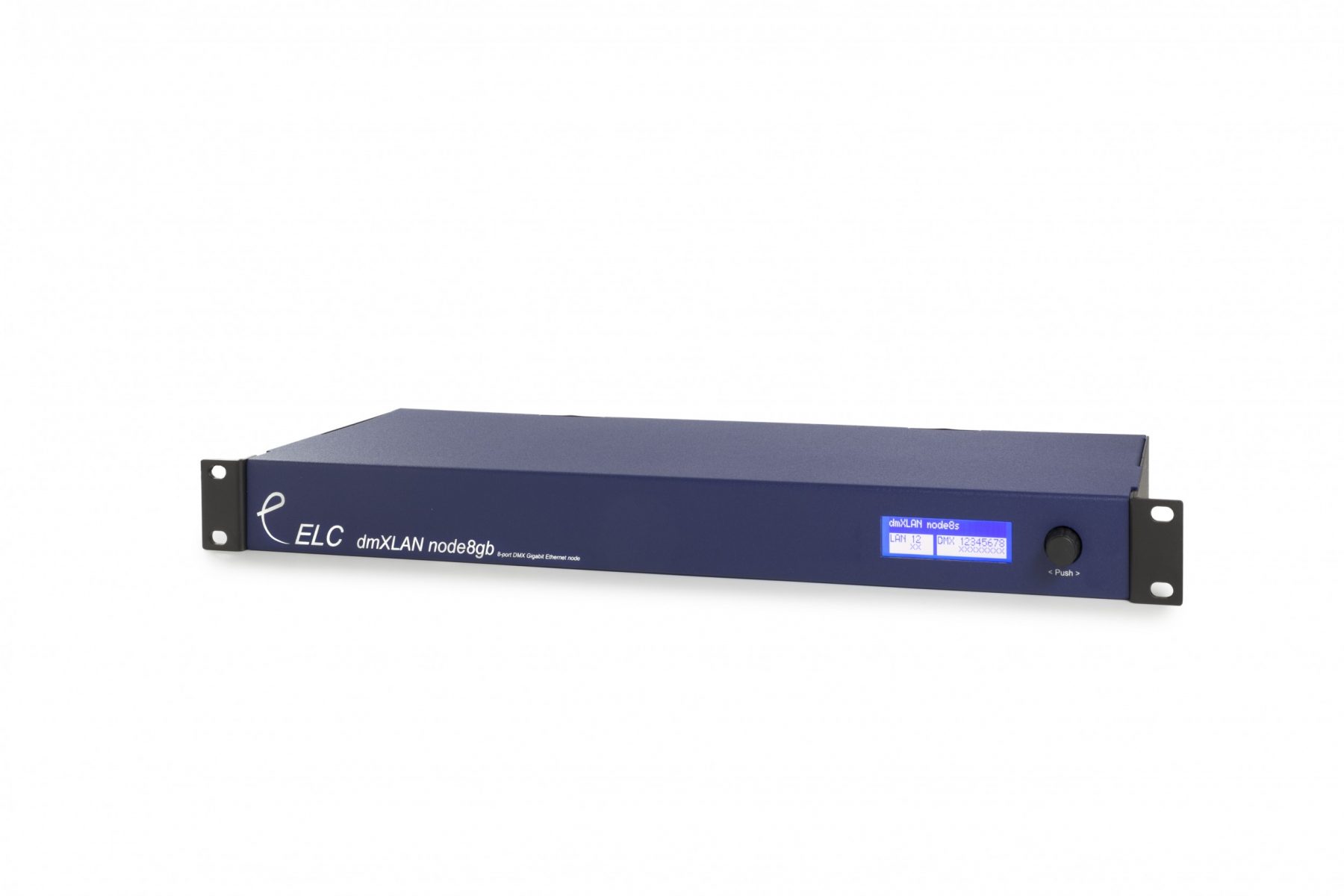

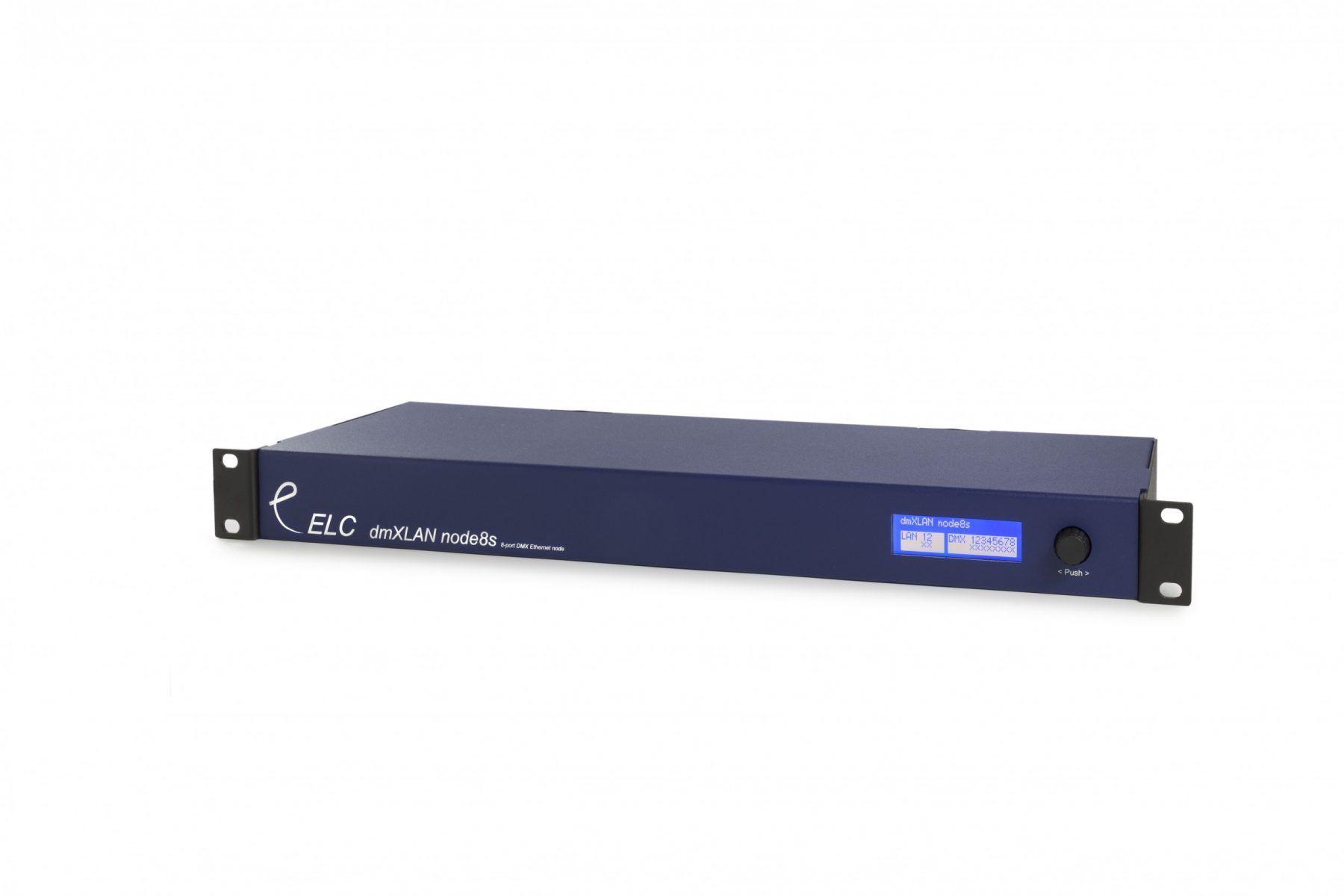

dmXLAN node8s/gb [discontinued]

Product description

The dmXLAN node8 comes in two variations:

DLN8GB – 8 Fully programmable DMX ports and a dual Gigabit port switch.
DLN8S – 8 Fully programmable DMX ports and a dual 10/100 MB port switch.

Both nodes offers data splitting, merging, softpatching and backup when programmed using ELC’s dmXLAN software.

Optional: Fully-isolated DMX ports

Article Numbers:
ELC-DLN8GB – 8 Fully programmable DMX ports and a dual Gigabit port switch.
ELC-DLN8S – 8 Fully programmable DMX ports and a dual 10/100 MB port switch.

Features

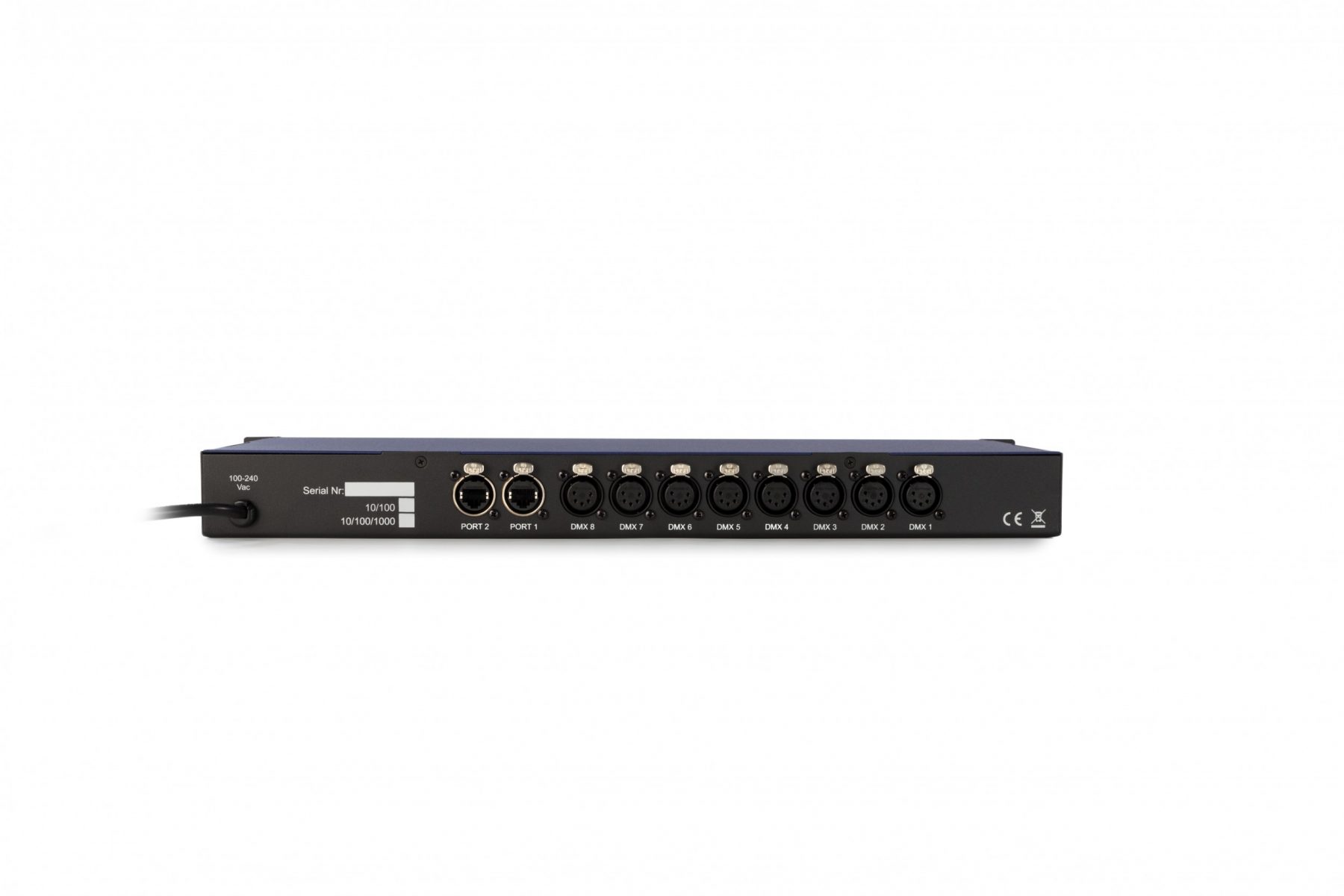

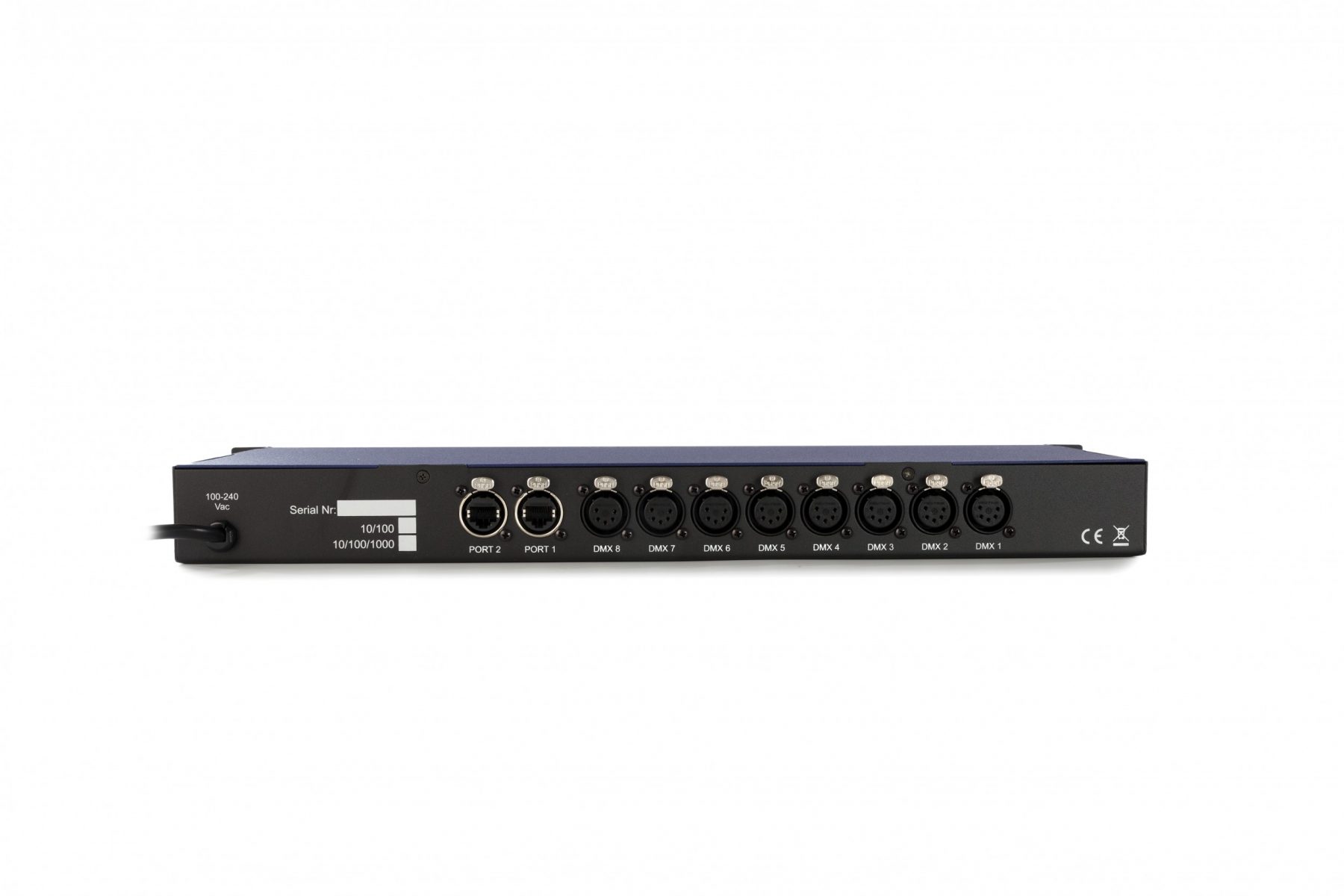

  • 8 Bi-directional DMX ports on the rear panel, RDM compatible
  • 2 Ethercon ports on the rear panel
  • Supports sACN, Art-Net & Shownet
  • Remote programming and monitoring and fixture parameter override
  • DMX Input normal or backup
  • DMX Output normal, HTP, Priority merging, Softpatch (channel by channel), programmable merging with DMX channel control
  • Local control via backlit display, rotary encoder/selector pushbutton
  • Support for WYSIWYG, ESP, Capture
