dmXLAN node6x [discontinued]

Product description

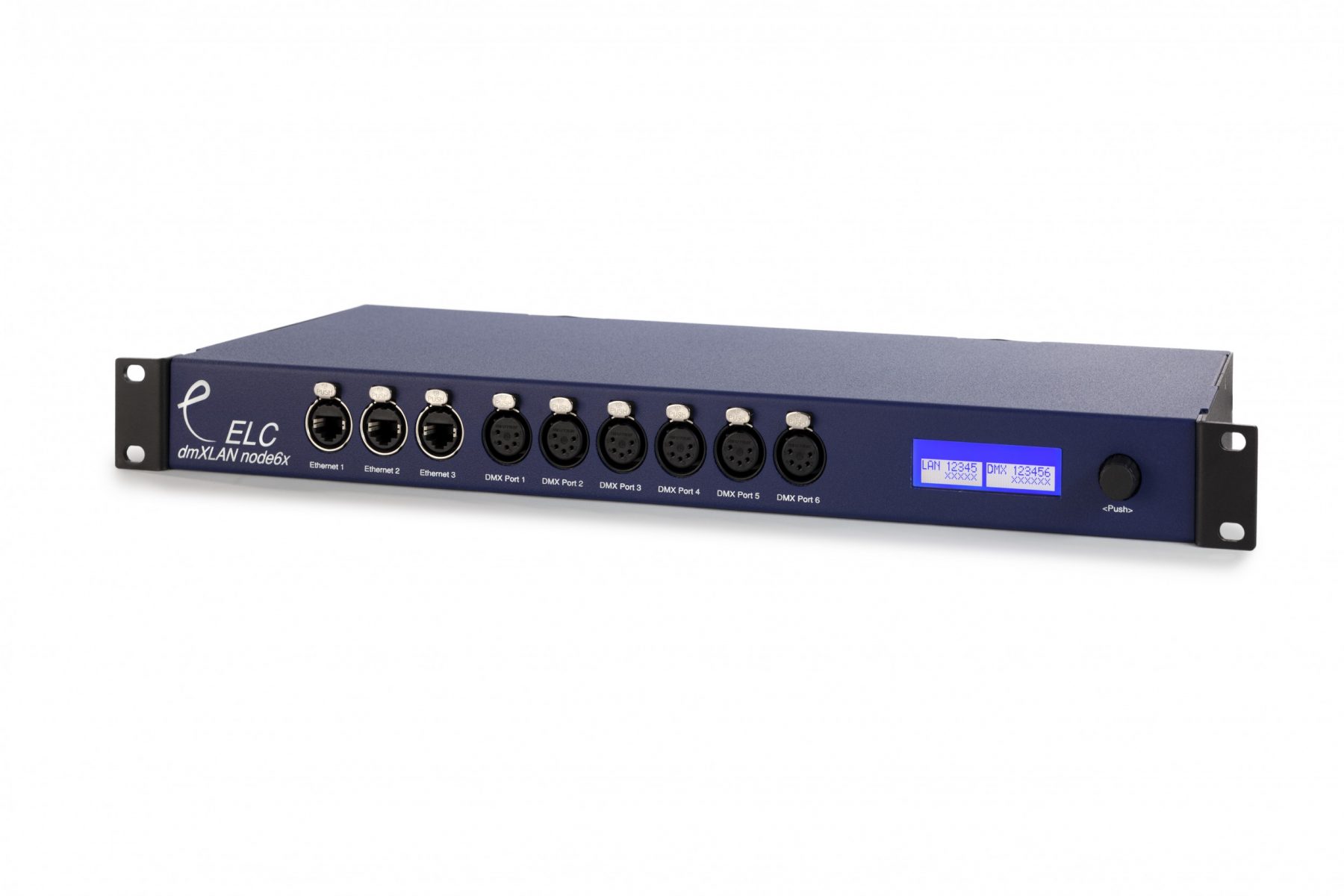

The dmXLAN node6x is a versatile and powerful addition to any lighting network as it combines a 6-port DMX to Ethernet node with a 5-port Ethernet switch in a single 1U high unit.

Now available with optional PoE on the 3 front-panel Ethernet ports!

This fully programmable node can be controlled via the LCD menu display and encoder switch on the front panel, or through the free ELC dmXLAN software.

The dmXLAN Node 6X has no fans and is therefore silent in operation. The DLN6X has regular DMX ports and the DLN6X-FI has fully-isolated DMX ports. Both versions may be ordered with optional Power over Ethernet for the three Ethernet sockets on the front panel.

Article Number: ELC-DLN6X

Features

  • 6 Bi-directional DMX ports on the front panel, XLR, RDM compatible
  • Supports sACN, Art-Net & Shownet

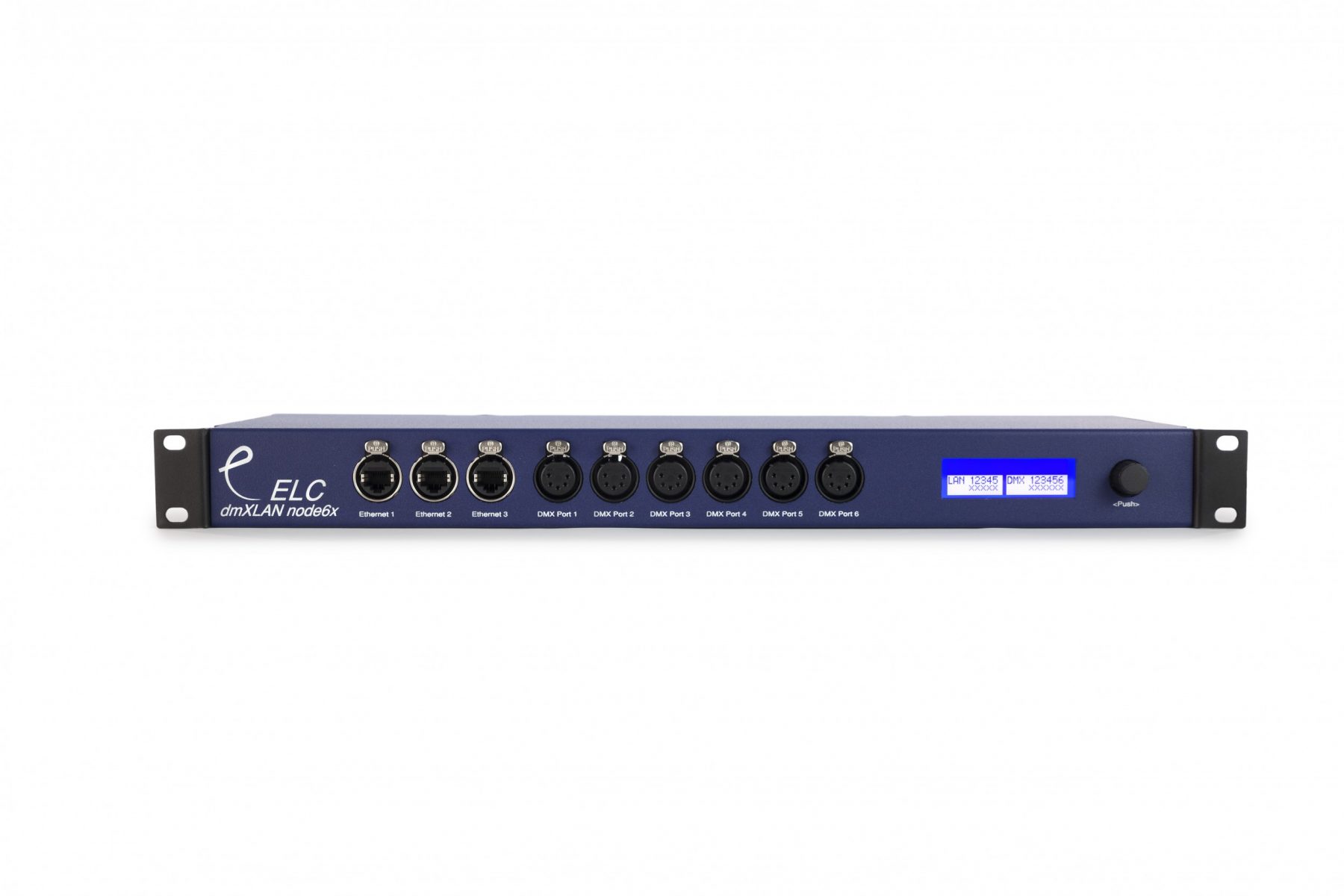

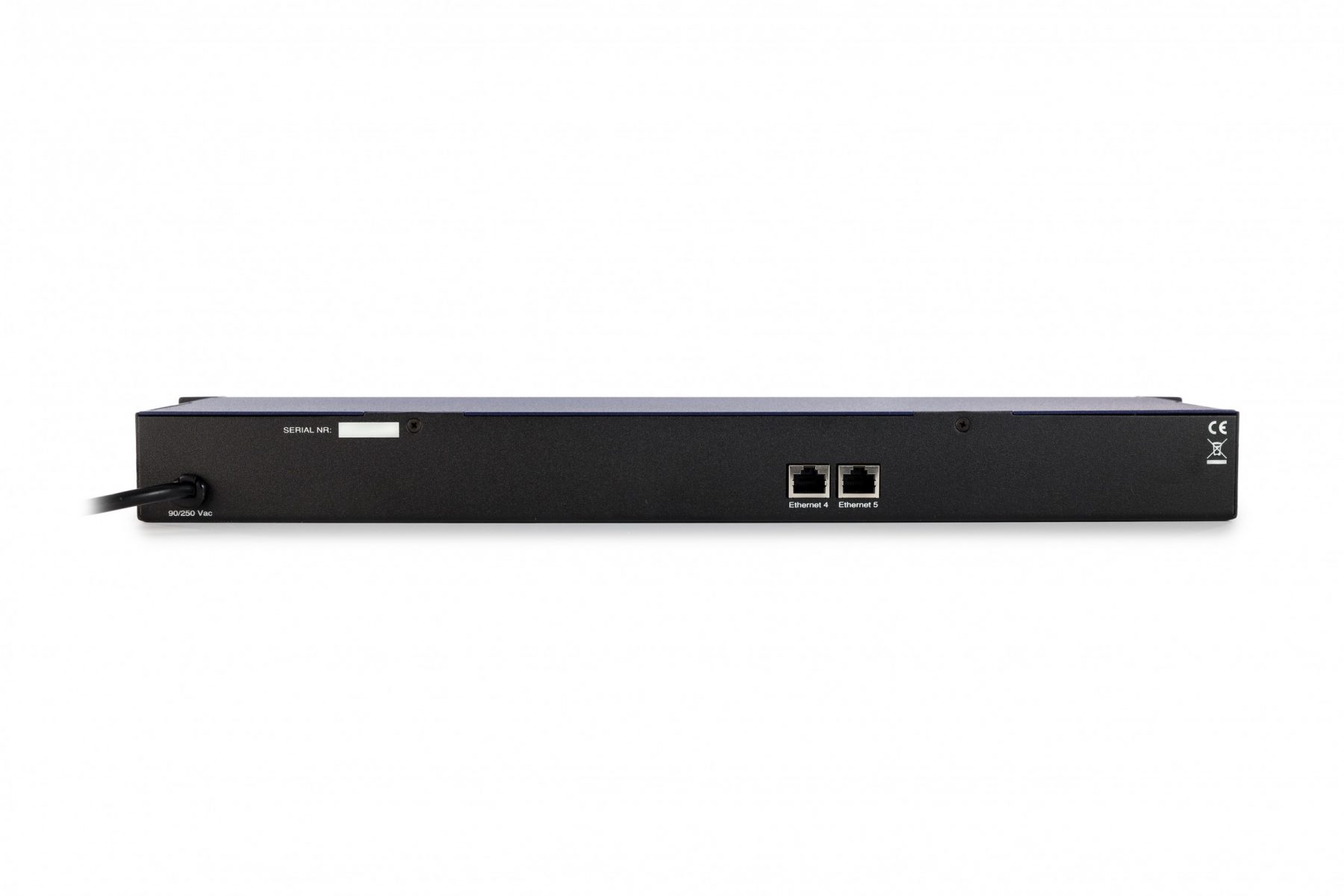

  • Integrated switch with 3 Ethernet ports (Neutrik Ethercon) 10/100MBit on the front and 2 Ethernet ports (regular RJ45 jacks) on the rear panel
  • Remote programming and monitoring and fixture parameter override
  • DMX Input normal or backup
  • DMX Output normal, HTP, Priority merging, Softpatch (channel by channel), programmable merging with DMX channel control
  • Local control via backlit display, rotary encoder/selector pushbutton
  • Support for WYSIWYG, ESP, Capture
